Cashco – 1000HP Pressure Reducing Regulator

M = Manual | O = On/Off
C = Modulating Control

Cashco

Cashco – 1000HP Pressure Reducing Regulator

Applications: Chemical & Synthetic Fuels Mining & Minerals Oil & Gas Power Generation Pulp, Paper & Cellulose

The Cashco 1000HP high pressure reducing regulator, is the most versatile, self-contained pressure reducing regulator available today. It has a high capacity allowing inlet pressures up to 179.3 Barg,...

Learn More

About Cashco – 1000HP Pressure Reducing Regulator

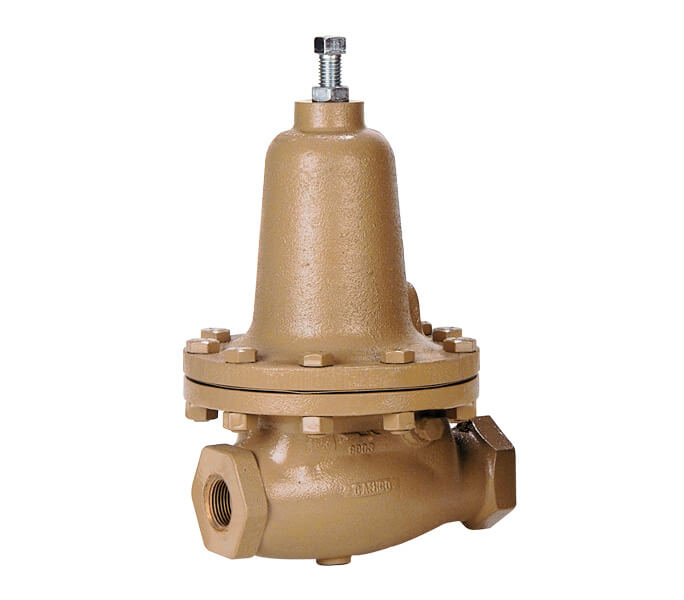

The Cashco 1000HP high pressure reducing regulator, is the most versatile, self-contained pressure reducing regulator available today. It has a high capacity allowing inlet pressures up to 179.3 Barg, while controlling downstream pressures between 0.69 and 20.7 Barg.

Available in sizes from 1/2″ to 2″ (DN15 to DN50). The unique internal design allows use in a multitude of applications, including process fluids that normal pressure reducing regulators can not  match. The most versatile self-contained, pressure reducing regulator available to users.

Model options

  • 1000HP Basic – Industrial gases, sour gases, fuel oil, compressed air, chemicals and water condensate.
  • 1000HP-5 / 1000HP-36 – Cryogenic liquified gas
  • 1000HP-SF – High pressure steam

We have full valve repair and reconditioning facilities in Secunda & Durban.

Contact our technical specialists today for a quote or download the general brochure to learn more. Should you require more detailed information, please visit the top right hand side of this page to find the complete list of technical documents and IOM’s.

Series1000HP Basic, Cryogenic, Steam
Design

All purpose Pressure Reducing Regulator

Features
  • Streamlined Flow Path
  • High Inlet Pressures
  • High Outlet Pressures
  • High Pressure Drop
  • Flow-to-Open
  • Protected Diaphragm Zone
  • Diaphragm Travel Stops
Size
Range

DN 15 – 50 / 1/2″ – 2″

Operating
Range
  • Inlet pressure 179.3 Barg
  • Outlet pressure 0.69 to 20.7 Barg
Temperatures-198°C to 315°C
End
Connections		NPT / BSPT / BSPP / Extended nipples / Flanged
Body
Materials

Cast iron / Bronze / Carbon steel / Stainless steel

Seat
Materials		Metal – SST Composition – Buna-N, EPR,
Options &
Accessories
  • Cryogenic construction
  • Cleaned for liquids & gases
  • Cleaning for oxygen service
  • Hydrogen service
  • Closing cap
  • Differential construction
  • Manual adjustor & locking leaver
  • Reduced port orifice
  • Integral seat
  • Pressure loaded
  • Remote venting
  • Rain proof bug vent
  • Drain hole
  • Stellited surfaces
  • Viscous liquid service
  • Clean unit for steam
  • High temperature gaskets
  • NACE construction
TrimBronze / Stainless steel
Applications

Industrial gases, sour gases, fuel oil, compressed air, chemicals and water condensate – Cryogenic liquified gas – High pressure steam
