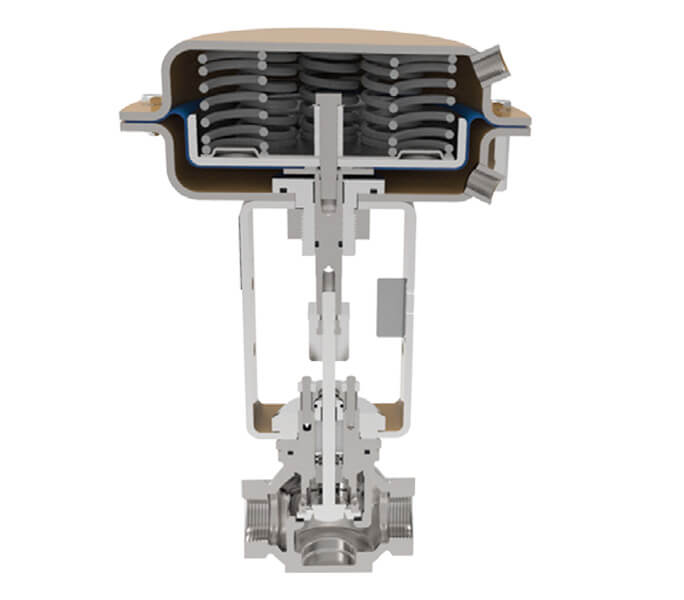

Cashco – 987 Globe Control Valve

The Cashco 987 globe control valve is a compact, economical, sliding stem, control valve designed primarily for general or chemical service. Use of investment body casting consolidates both carbon steel and stainless steel applications into...

Learn More

About Cashco – 987 Globe Control Valve

The Cashco 987 globe control valve is a compact, economical, sliding stem, control valve designed primarily for general or chemical service.

Use of investment body casting consolidates both carbon steel and stainless steel applications into the standard 316LSST (CF3M)
material. The valve body and trim material is also available in Hastelloy C® construction.

Standard trim is metal seated design giving Class IV shutoff. Optional composition seat design gives Class VI shutoff. Avail able in body sizes 1/2″ through 1″ (DN15–DN25). End connections available: NPT, extended pipe nipples, flanged or flangeless.

Designed for use in a wide range of applications in corrosive chemical fluids and hostile atmospheres. Can also be applied as a general service control valve for utilities services – steam, air, oil, water, industrial gases, etc., requiring low flow applications.

The standard seat/plug/stem material is 316L SST to maximize corrosion resistance. May be applied up to 99.3 Barg pressure limit, or 232°C temperature limit.

We have full valve repair and reconditioning facilities in Secunda & Durban.

Contact our technical specialists today for a quote or download the brochure to find out more.

Series	987
Design	Globe Control Valve / Sliding Stem Control Valve
Features	Wetted parts 316L SST or Hastelloy C® Flow-to-open design increases rangeability and maximized stability High pressure drop capability Standard TFE V-ring packing Multiple reduced trim selections Equal percent characterization External corrosion protection Field reversible actuator NACE construction available
Size Range	DN 15 – 25 / 1/2″ – 1”
Pressure Rating	Meets ANSI B16.34 for 150 / 300 / 600
Temperatures	-29°C to 232°C
End Connections	NPT / Flanged / Flangeless / Extended Nipples
Body Materials	Stainless steel CF3M / Hastelloy C
Seat Materials	316 Stainless steel / Hastelloy C
Plug Materials	316 Stainless steel / Hastelloy C
Options & Accessories	Multiple reduced trims Fail open or closed actuator Metal (Class IV) or soft seat (Class VI) Manual handwheel Line bolting for flangeless body NACE Service Stellited surfaces Cleaning for oxygen service Viscous service bonnet 4-20mA, HART and Profibus Positioners
Applications	The Cashco 987 is designed for use in a wide range of applications in corrosive chemical fluids and hostile atmospheres. Can also be applied as a general service control valve for utilities services – steam, air, oil, water, industrial gases, etc, requiring low flow applications.
