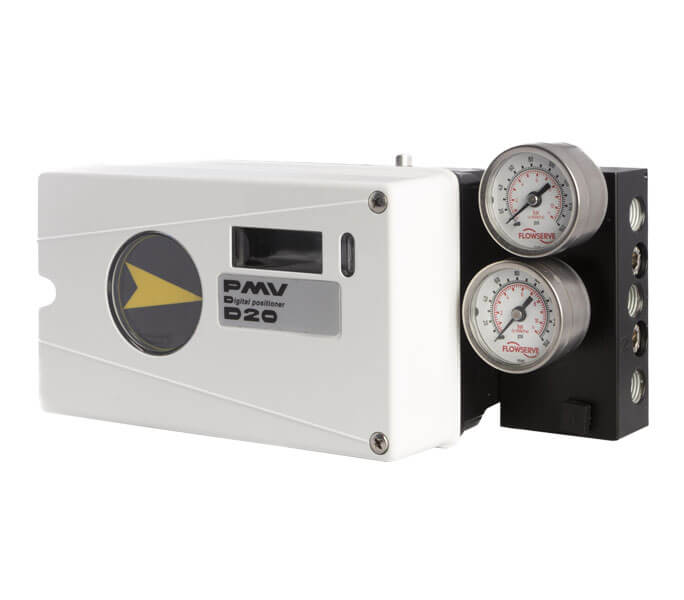

PMV – D20 Compact Digital Valve Positioner

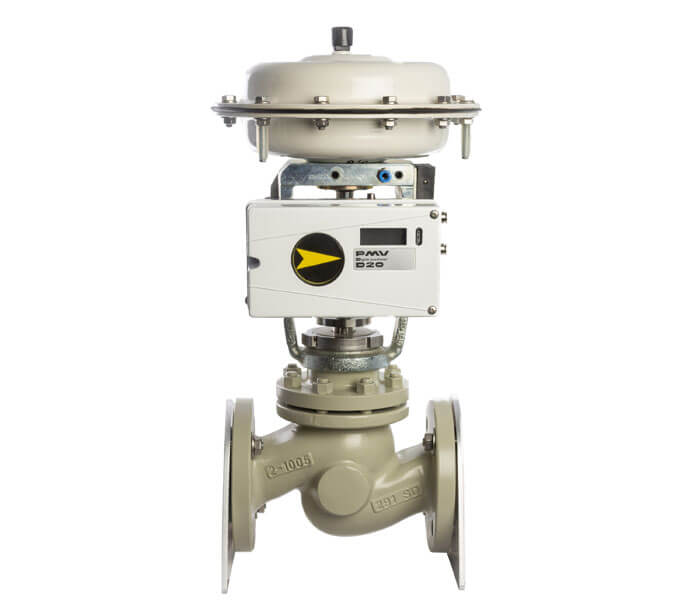

The New PMV D20 compact digital positioner is ideal for both linear and rotary actuators in single-acting applications. It offers very high control precision on even the smallest...
About PMV – D20 Compact Digital Valve Positioner
The New PMV D20 compact digital positioner is ideal for both linear and rotary actuators in single-acting applications. It offers very high control precision on even the smallest valves. IS, NI and explosion-proof versions.
- Greater process control with very high precision, even on the smallest valves, plus add-in switches and 4-20 mA position feedback options.
- Installation and operation ease from friction clutch, compact design, and single button quick auto-calibration feature that tunes the D20 in seconds.
- Broad application versatility made possible by flexible design that allows mounting to VDI/VDE 3845 (rotary) and VDI/VDE 3847 (linear with integrated tubing) standards.
- Optional LCD (D22).
- ATEX, FM intrinsically safe and non-incendive certificates, explosion-proof version, Alu or SST and LCD available.
- 4-20 mA In/Out, Hart, Profibus PA and Foundation Fieldbus available.
Contact one of our technical specialists for a quote today or download the brochure to learn more!
| Series | D20 (New) |
| Design | Compact Digital Modulating Rotary & Linear Control |
| Features |
|
| Housing Materials | Aluminium / Stainless Steel |
| Summary | Diagnostics
|
| Max Pressure | 6 Bar |
| Options & Accessories |
|
| Configuration | Download Supporting Software here
|
| With Comms |
|
| Applications | Where accurate modulating control is required for rotary and linear control valves. |
