Cashco

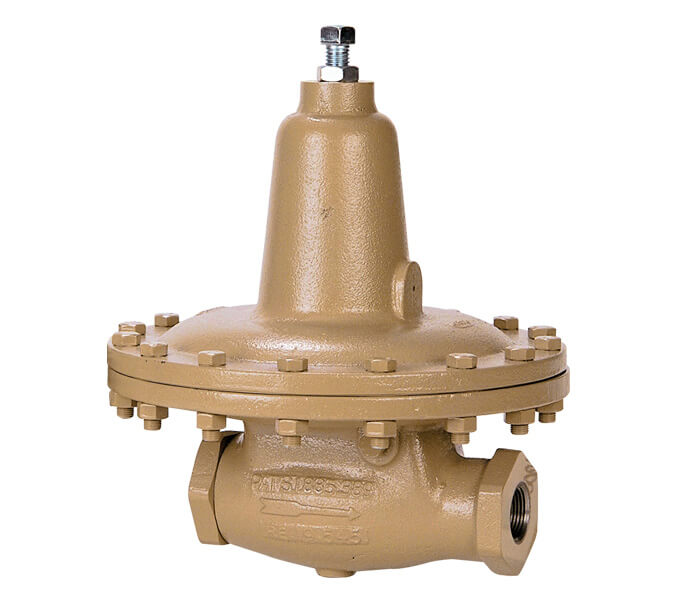

Cashco – 1000LP Low Pressure Reducing Regulator
The Cashco 1000LP pressure reducing regulator is a high capacity, low pressure regulator used to control downstream pressure between .07 and 2.1 Barg. Sizes are from 1/2″ to 1″ (DN15 to DN25). The 1000LP is...
About Cashco – 1000LP Low Pressure Reducing Regulator
The Cashco 1000LP pressure reducing regulator is a high capacity, low pressure regulator used to control downstream pressure between .07 and 2.1 Barg. Sizes are from 1/2″ to 1″ (DN15 to DN25).
The 1000LP is the low pressure version of the Cashco 1000HP pressure reducing regulator. The designs are essentially equal, except that the 1000LP has a larger diaphragm area which is required for the lower operating pressures.
The unique internals design allows use in a multitude of applications, including process fluids, that normal pressure reducing regulators cannot match.
We have full valve repair and reconditioning facilities in Secunda & Durban.
Contact our technical specialists today for a quote or download the general brochure to learn more. Should you require more detailed information, please visit the top right hand side of this page to find the complete list of technical documents and IOM’s.
| Series | 1000LP Low Pressure |
| Design | All purpose Low Pressure Reducing Regulator |
| Features |
|
| Size Range | DN 15 – 50 / 1/2″ – 2″ |
| Operating Range |
|
| Temperatures | -29°C to 315°C |
| End Connections | NPT / BSP / Extended nipples / Flanged |
| Body Materials | Ductile iron / Bronze / Carbon steel / Stainless steel |
| Seat Materials | Soft / Metal |
| Options & Accessories |
|
| Trim | Bronze / Stainless steel |
| Applications | Industrial gases, saturated steam, sour gases, fuel oil, compressed air, chemicals and water condensate. |
