Arca – Artes Atomising DesuperheaterEnquire Now

ARCA - ARTES DESUPERHEATERAtomising type desuperheater
ARCA - ARTES DESUPERHEATERAtomising type desuperheater

BRAND: ArcaCATEGORY: Desuperheaters

The Arca Artes steam atomising desuperheater is used for cooling and controlling steam temperatures in process plants and power stations. They are used when velocities are too low for or process parameters and conditions are not suitable for the Arca Artes Injection Desuperheater.

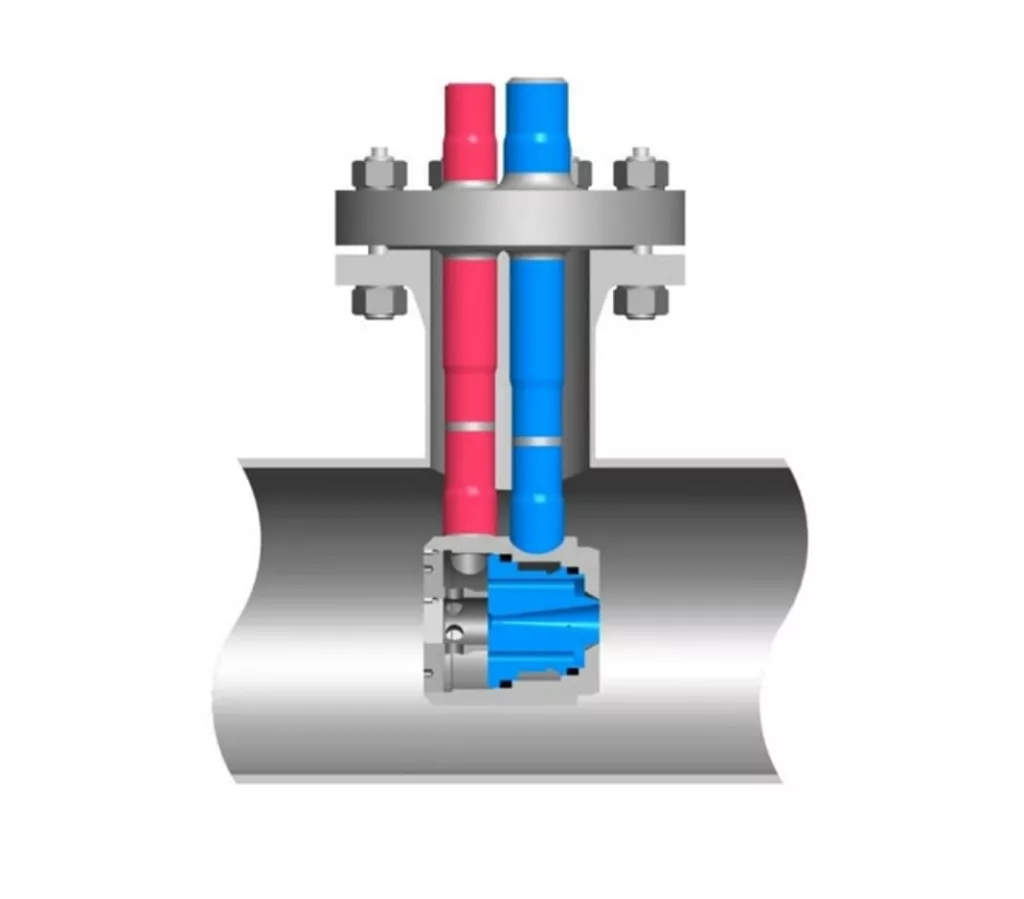

The steam atomising desuperheater uses a 2 nozzle system with a laval nozzle principle where steam is used to assist in the atomising of the injected cooling water. The steam escapes from the nozzle orifice at a critical speed and atomises the injected cooling water into micro-fine droplets.

We provide full valve repair and reconditioning facilities in Secunda & Durban.

Contact one of our technical specialists for a quote today!

Specifications

SeriesArtes
Design

Motived Steam Desuperheater

Features
  • Good mixing due to turbulence of the motive steam
  • Good vaporisation even at low vapour pressures
  • Cooling to saturated steam temperature possible
  • Excellent control performance at partial load
  • Short distance to temperature measurement
  • Good heat exchange and low vaporisation time
  • Large rangeability possible
  • Full repair & reconditioning support in South Africa
Size
Range

Inlet flange DN25 (1”) / Line sizes up to DN150 (6″)

Pressure
Rating

Up to PN400 / ANSI 2500

TemperaturesUp to 600 deg.c
End
Connections
Flanged
Body
Materials

Forged DIN and ASTM to suit application

Seat
Materials
Forged DIN and ASTM to suit application
Plug
Materials
Forged DIN and ASTM to suit application
Applications

Steam temperature reduction and control in Power Generation, Oil Refining, Chemical, Pulp & Paper and Sugar industries where process conditions are not ideal for an injection desuperheater.

To find out more about specific applications visit our application section!
