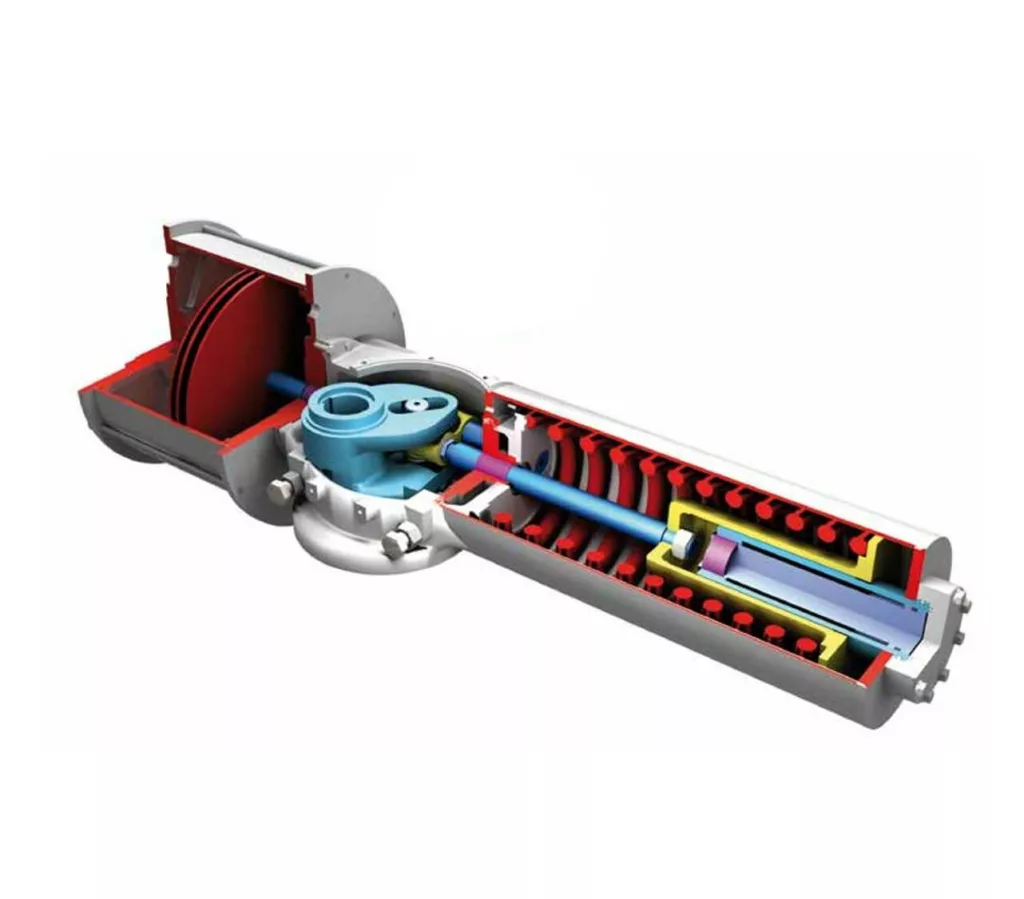

Actreg – SY Pneumatic Scotch Yoke Actuator
Applications: Chemical & Synthetic Fuels Mining & Minerals Oil & Gas Power Generation
The Actreg SY series is a scotch yoke actuator that creates high break-out torques making them ideal for all quarter turn valves such as ball, butterfly and plug....
About Actreg – SY Pneumatic Scotch Yoke Actuator
The Actreg SY series is a scotch yoke actuator that creates high break-out torques making them ideal for all quarter turn valves such as ball, butterfly and plug. With torques up to 700,000 Nm, they will operate even the largest valve in your plant. Being SIL 3 certified, they are suitable for ESD and HIPPS applications.
The optional Actlock Partial Stoke Test (PST) module can be integrated into the actuator housing and is a 100% reliable mechanical solution that does not need complicated software or fragile wiring and connections. It offers a 3 in 1 function, Partial Stroke Test, locking device and stroke limiter.
Our valve automation centres in Secunda and Durban can assemble and test your valve packages to international standards including hydraulic power pack for manual override. Every Actreg actuator is built to provide long and efficient service with minimum maintenance. The design, engineering and materials used in their construction ensure optimum performance even in the harshest environments. Totally enclosed weatherproof centre-body and caps provided with o’ rings to ensure it is protects from any water ingress. For control applications, options of 4-20mA positioners, HART Positioners and Profibus Positioners are available. The centre-body has a guide that supports transverse forces of the scotch yoke mechanism and ensures proper alignment of the piston rod.
Contact one of our technical specialists for a quote today or download the technical bulletin to learn more!
| Series | SY |
| Design | All Steel Pneumatic Scotch Yoke Actuator |
| Features |
|
| Torque Range | Up to 700,000 Nm |
| Max Pressure | 8 Bar |
| Materials | Carbon steel, electroless nickel plated cylinders with internal corrosion protection. High strength internal alloys |
| Options & Accessories |
|
| Applications | A scotch yoke actuator for On /off, ESD systems and heavy duty modulating control for quarter turn valves and where Partial Stroke Testing is required. |
