HP Valves

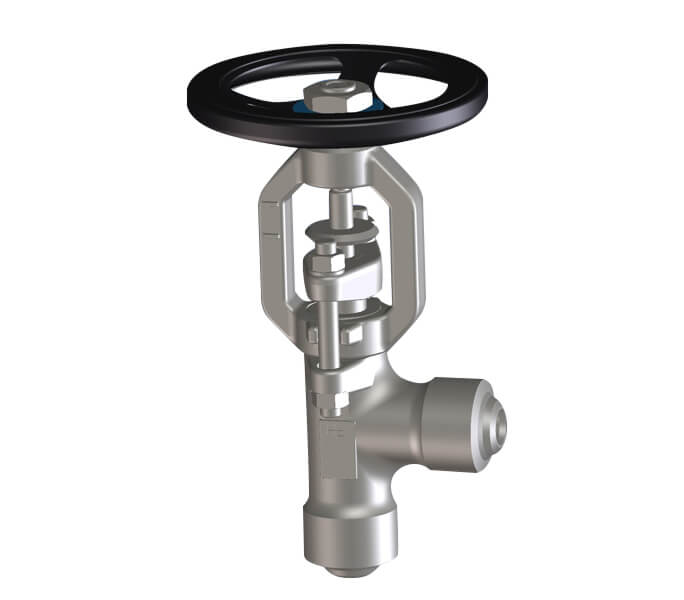

HP Valves – FS Globe Fig 02.3 Throttle PN160-640
Applications: Power Generation Pulp, Paper & Cellulose
The HP Fig 02.3 is an high pressure angle pattern forged steel globe valve manufactured to meet the requirements of Eskom and the power generation industry in South...
About HP Valves – FS Globe Fig 02.3 Throttle PN160-640
The HP Fig 02.3 is an high pressure angle pattern forged steel globe valve manufactured to meet the requirements of Eskom and the power generation industry in South Africa. Thousands of HP Valves are installed in the Eskom power generation fleet. HP Valves competes against Sempell and Persta.
With a history in The Netherlands that goes back to 1879, HP Valves manufactures cast and forged steel valves in conventional gate, globe and check, angled and Y pattern for medium and high pressures.
With 2 valve repair centres in South Africa we are are able to repair and recondition all makes of high pressure valves and support all the needs of Eskom Power Stations. Contact one of our technical specialists today for a quote or download the brochure to learn more!
| Series | HP Valves - Fig 02.3 |
| Design | Forged Steel Globe Valves, angle Pattern Bonnetless |
| Features |
|
| Size Range | 15mm to 50mm / 1/2″ to 2″ |
| Pressure Rating | PN160 – 640 |
| Temperatures | As per forged materials |
| End Connections | SW, BW, NPT, Flanged |
| Body Materials | SA182-F316(L) / SA350-LF2 / SA182-F92 / 16Mo3 / SA105N (1.0460) / SA182-F12 (13CrMo4.5) / SA182-F22 (13CrMo9.10) / SA182-F91 (1.4903) / Others on request) |
| Options & Accessories |
|
| Trim | 17CR / Stellite – F316 / Stellite (Others on request) |
| Applications | Isolation and throttling of high pressure steam and condensate in the Power Generation Industry |
