HP Valves – FS Gate Fig 06.6 DN10-100 PN160-500Enquire Now
BRAND: HP ValvesCATEGORY: Gate, Globe & Check Valves

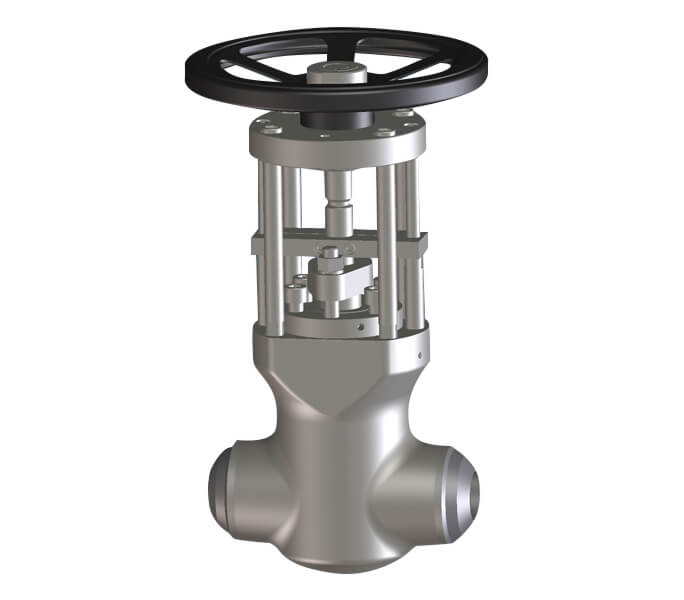

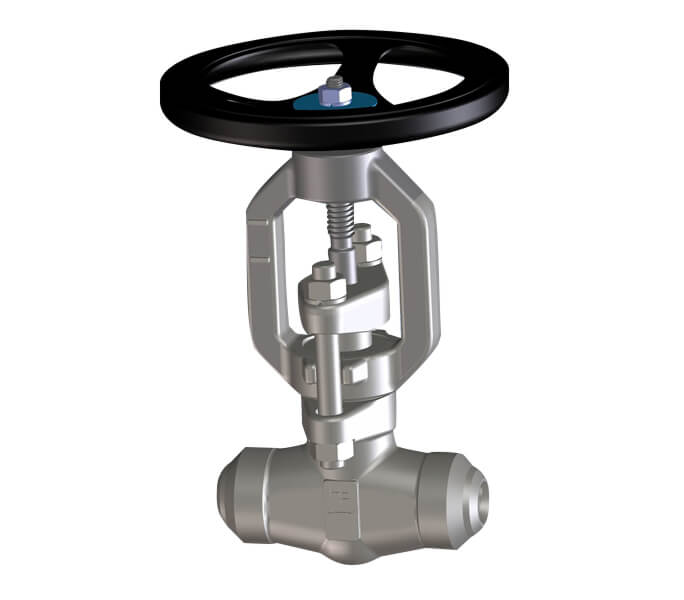

The HP Fig 06.6 is a high pressure forged steel gate valve manufactured to meet the requirements of Eskom and the power generation industry in South Africa. Thousands of HP Valves are installed in the Eskom power generation fleet. HP Valves competes against Sempell and Persta.
With a history in The Netherlands that goes back to 1879, HP Valves manufactures cast and forged steel valves in conventional gate, globe and check, angled and Y pattern for medium and high pressures.
With 2 valve repair centres in South Africa we are are able to repair and recondition all makes of high pressure valves and support all the needs of Eskom Power Stations. Contact one of our technical specialists today for a quote or download the brochure to learn more!
Specifications
| Series | HP Valves - Fig 06.6 |
| Design | Forged Steel Gate Valves, Bonnetless / Pressure Seal |
| Features |
|
| Size Range | 10mm to 100mm / 3/8” to 4” |
| Pressure Rating | PN160 – 640 / ASME 1500 – 2500 |
| Temperatures | As per forged materials |
| End Connections | SW / BW |
| Body Materials | DN10-50 SA105N / SA350LF2 / SA182-F12 / SA182-F22 / SA182-F316 (L) / SA182-F51 / SA182-F91DN65-100 (S)A105N (1.0460) / (S)A182-F22 (10CrMo9.10) / (S)A182-F91 (1.4903) / (S)A182-F92 / (S)A182-F316 (L) |
| Options & Accessories |
|
| Trim | 17CR / Stellite – F316 / Stellite – F51 / Stellite - A106 / Stellite #12 - Stellite #6 |
| Applications | Isolation of high pressure steam and condensate in the Power Generation industry |
