Cashco – 8900 Emergency Relief Vents
The Cashco 8900 Series Emergency Relief Vents provide additional relieving capacity when abnormal conditions exceed the capability of a tank’s normal vent. Designed for atmospheric and low-pressure storage tanks, the Series helps protect equipment against...
About Cashco – 8900 Emergency Relief Vents
Emergency Tank Protection and Manway Access.
The Cashco 8900 Series Emergency Relief Vents provide additional relieving capacity when abnormal conditions exceed the capability of a tank’s normal vent. Designed for atmospheric and low-pressure storage tanks, the Series helps protect equipment against excessive internal pressure or vacuum while providing convenient manway access for inspection and maintenance.
Four models allow engineers to match the relief function and loading method to the application:
- 8910 — spring-loaded pressure relief

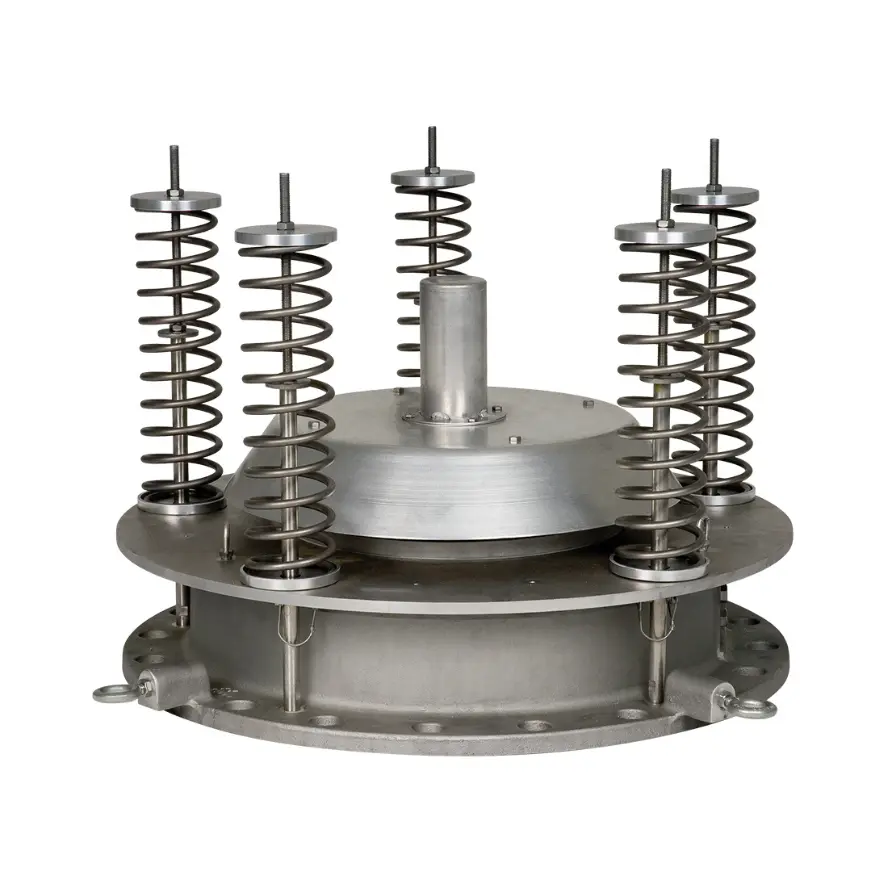

- 8920 — spring-loaded pressure/vacuum relief

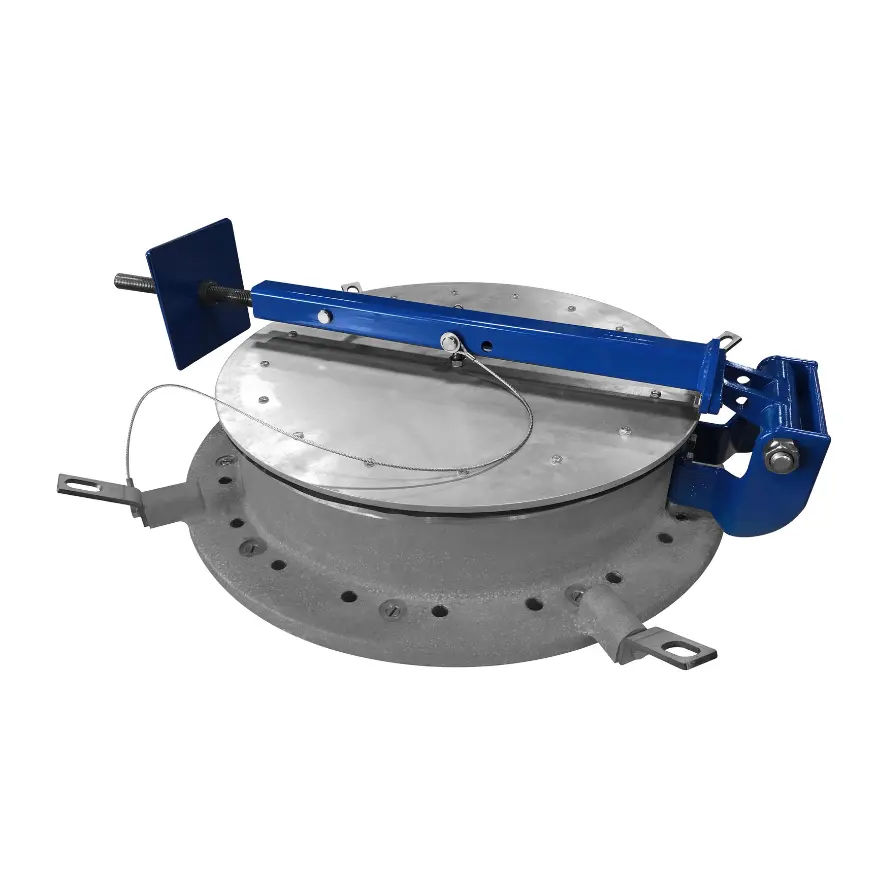

- 8930 — weight-loaded pressure relief

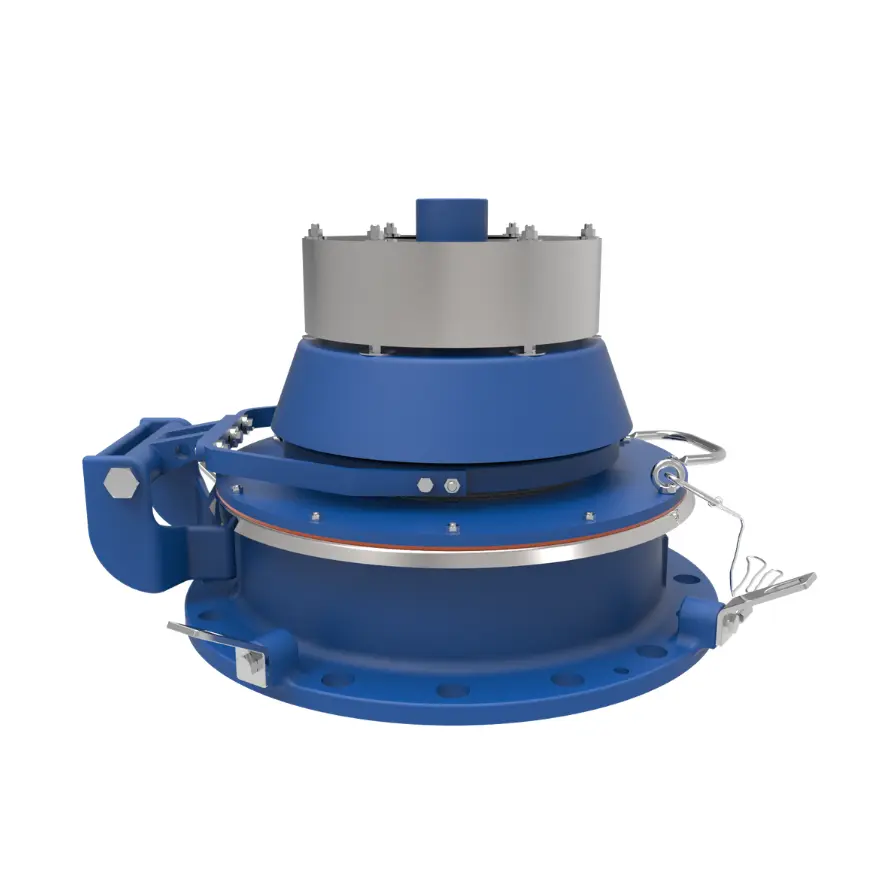

- 8940 — weight/spring-loaded pressure/vacuum relief
During normal operation, the pallet assembly maintains a vapour-tight seal. Under emergency conditions, the vent opens to relieve excessive pressure or vacuum and then reseats when normal conditions return. Its air-cushion diaphragm design supports effective sealing, while the removable or hinged assembly simplifies access to the tank.
For technicians, engineers and production managers, this means:
- Improved tank protection — Additional emergency relieving capacity helps prevent damage when abnormal conditions exceed the capability of the normal tank vent.
- Correct protection for the duty — Pressure-only and pressure/vacuum models allow the vent to be matched to the tank’s operating requirements.
- Reduced product and vapour loss — Vapour-tight pallet sealing helps limit unnecessary emissions during normal operation.
- Simplified inspection and maintenance — Manway access and removable or hinged pallet assemblies provide convenient access for tank entry, cleaning and repairs.
- Reliable reseating — The air-cushion diaphragm and guided pallet design support effective sealing once excessive pressure or vacuum has been relieved.
- Flexible engineering selection — Spring-loaded and weight-loaded configurations accommodate different set-point and operating requirements.
- Easier handling — Rugged, lightweight construction assists technicians during inspection and maintenance.
Emergency protection. Dependable sealing. Practical tank access.
Download the Cashco 8900 Technical Bulletin
Contact us Today – Tel: 0861 103 103
| Series | 8900 |
| Design | Manway emergency pressure and pressure/vacuum relief vents; top-guided spring-loaded or hinged weight/spring-loaded construction |
| Features |
|
| Size Range |
|
| Temperatures | FEP-TFE: −240°C to 204°C; FKM: 0°C to 204°C; Buna-N/NBR: −34°C to 93°C; EPDM: −40°C to 107°C |
| End Connections | Flanged |
| Options & Accessories |
|
